Gradient


6 replies to this topic

#1 Quiet Pete

    Video Game Driver

  • Members
  • Pip
  • 6 posts

Posted 24 May 2012 - 12:54 AM

alright guys, im having problems with getting track to go up quite a steep hill,the track keeps uncliping its self just
woundering what u guys use to up and down with

thanks

#2 Graham Lane

    La Porta Verde

  • Members
  • PipPip
  • 535 posts
  • Gender:Male
  • Location:Castello delle Forme, Umbria, Italy

Posted 24 May 2012 - 03:13 AM

What sort of track? Commercial plastic track is not designed to be used for creating steep gradients. If you intned to do this
keep the corners as flat as possible and restrict the inclines to the straights. Check out my track (via my signature) and you
will see about the limit that's attainable for Scalextric SSD track. I hope that helps.
Click here to see my track

I think more about slot cars now than I did about sex when I was sixteen.

Posted Image incorporating the Italian round of Posted Image
...this is the BIG one!
3rd, 4th, 5th and 6th October 2013
Castello delle Forme, Umbria, Italy

#3 Quiet Pete

    Video Game Driver

  • Members
  • Pip
  • 6 posts

Posted 24 May 2012 - 04:32 AM

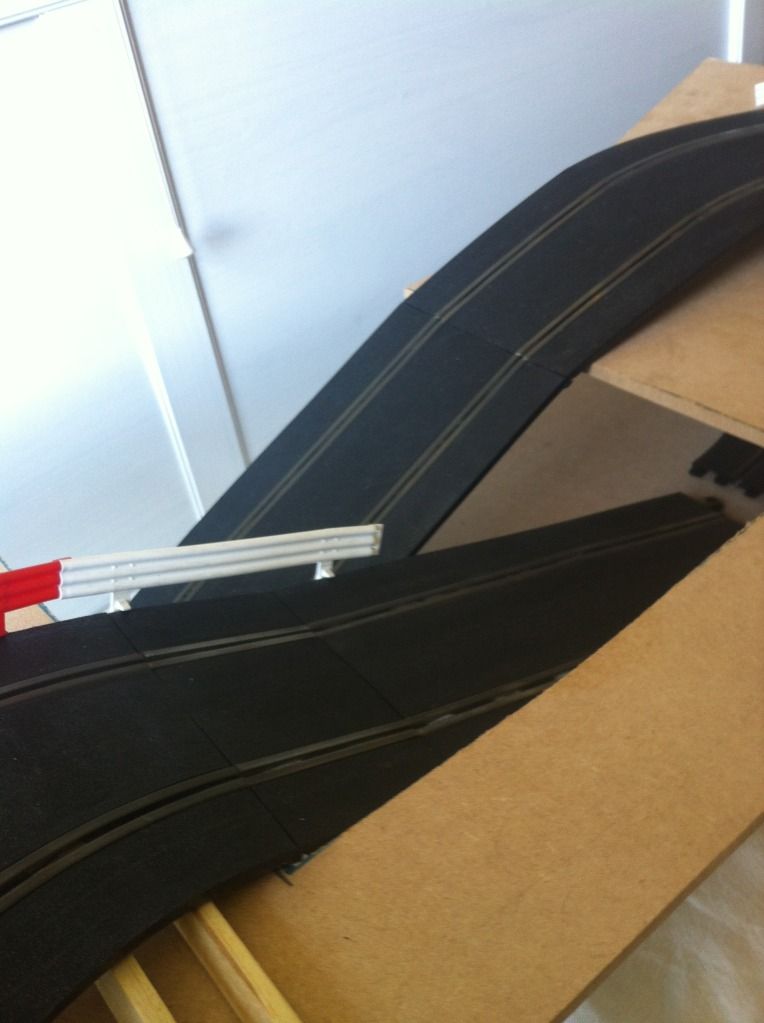

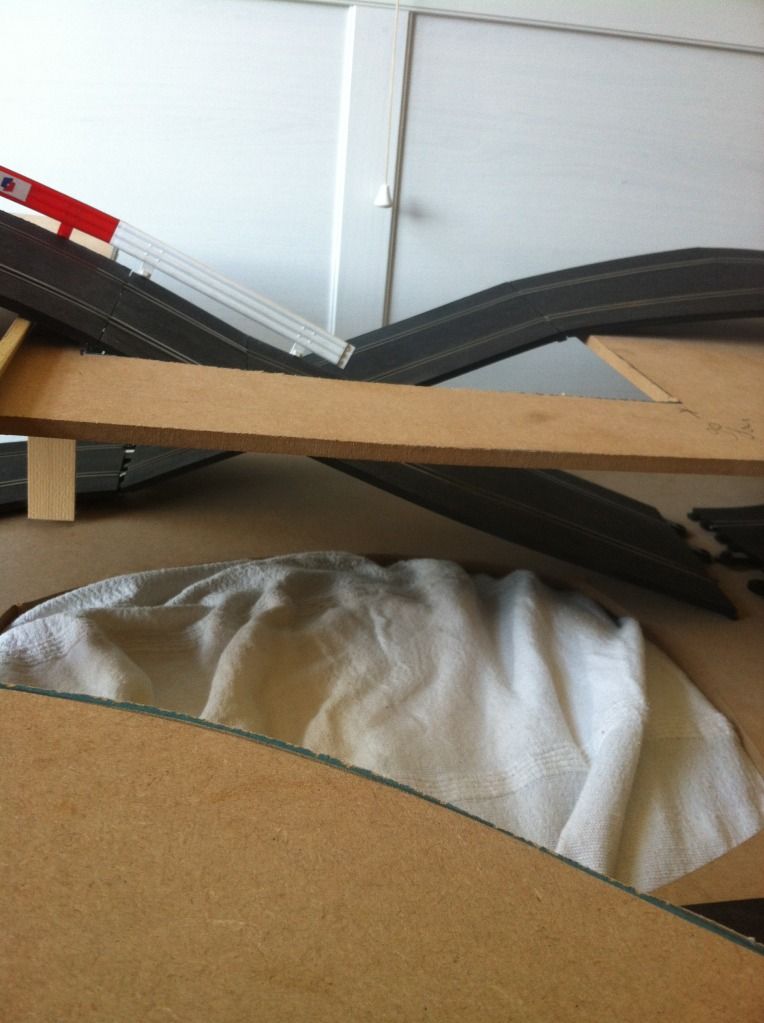

fair play thats pretty epic, i took some photos

Posted Image

Posted Image

#4 gazza

    2003 World hide and seek champion

  • Super Moderator
  • PipPipPipPipPipPipPip
  • 7,072 posts
  • Gender:Male
  • Location:Sitting in front of the computer, how else could i be typing this

Posted 24 May 2012 - 04:42 AM

Hi Pete

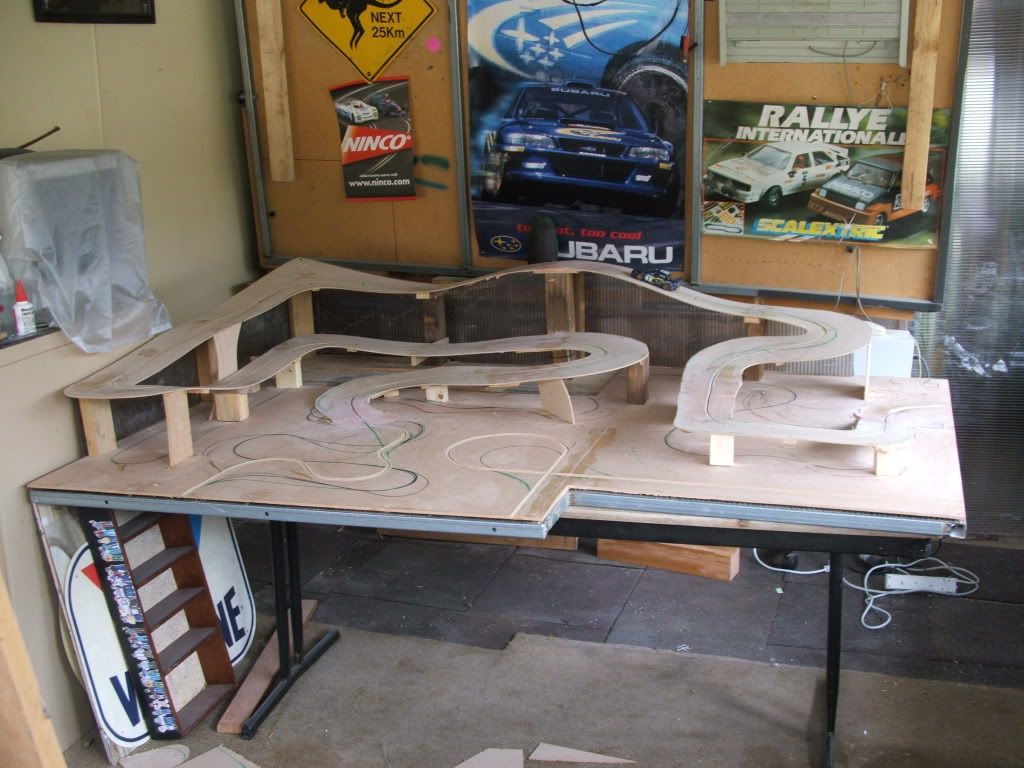

Can't help you with the plastic track as most of us over here have gone over to the dark side and have mostly routed tracks .....

Posted Image

It gives you a lot more flexibility when designing those tight twisty sections

Posted Image

There's no reason you couldn't make up a couple of small sections and incorporate them into your design

It might encourage you to try a full routed track

My track history ..... http://www.auslot.co...casula-raceway/
Quickly read this post before it is deleted or i turn grey again

Gary

Posted Image

http://www.facebook.com/Rallyproxy2012

#5 Quiet Pete

    Video Game Driver

  • Members
  • Pip
  • 6 posts

Posted 24 May 2012 - 05:13 AM

becasuse of where i have built my track i need it to be pulled apart n so on, but the problem i have is im not sure weather to bend the track half way down the straight section or on the join, if u do it on the join it tends to unpop and also stripps the braids and if u do it half way down the section its kinda sits in its own position :(

#6 Ember

    Possible diorama queen

  • Super Moderator
  • PipPipPipPipPipPipPip
  • 7,323 posts
  • Gender:Female
  • Location:Hamilton, Victoria

Posted 24 May 2012 - 07:46 AM

Pete, it will work, you just need some support for it. I used 3 mm MDF as a base so that the joints are supported. My track may not be quite as enormormous as Mr Lane's but it does contain some reasonable rise and fall, through corners and everything.

Embs
Computers. They'll never catch on.

Posted Image

Tiny Tyers Targa - The build saga continues - Aging wood - A recipe for staining wood - Don't take a fence - Step by step paling fence - An old shed for my new cars - Wooden garage under construction

#7 Graham Lane

    La Porta Verde

  • Members
  • PipPip
  • 535 posts
  • Gender:Male
  • Location:Castello delle Forme, Umbria, Italy

Posted 24 May 2012 - 08:08 AM

Hmmm. I'd be looking at 6mm MDF to create elevations like that, and rout right the way through. The cypress forest leading up to the viaduct was done this way and it give a huge amount of rise in a short space. Fun to drive too.
Click here to see my track

I think more about slot cars now than I did about sex when I was sixteen.

Posted Image incorporating the Italian round of Posted Image
...this is the BIG one!
3rd, 4th, 5th and 6th October 2013
Castello delle Forme, Umbria, Italy
